YBM 8T-63TT
Table trunnion type 5-axis machine
![](https://www.yasda.co.jp/cp/wp-content/uploads/8T-63TT_front.png)
![](https://www.yasda.co.jp/cp/wp-content/uploads/comingSoon.png)
![](https://www.yasda.co.jp/cp/wp-content/uploads/comingSoon.png)
![](https://www.yasda.co.jp/cp/wp-content/uploads/comingSoon.png)
Base machine specifications
Travel (X/Y/Z) | 1,000/1,000/1,100mm |
---|---|
Spindle speed range | 50-10,000min-1 |
Spindle taper hole | MAS BT50 |
ATC | 60 tools |
NC unit | FANUC 31i-B5 Plus |
Outline
![](https://www.yasda.co.jp/cp/wp-content/uploads/outline_8T-63TT.png)
- Unit[mm]
- M/C HEIGHT(F.L.)
- ・3495(Y=1000ST.)
- ・3745(Y=1250ST.)

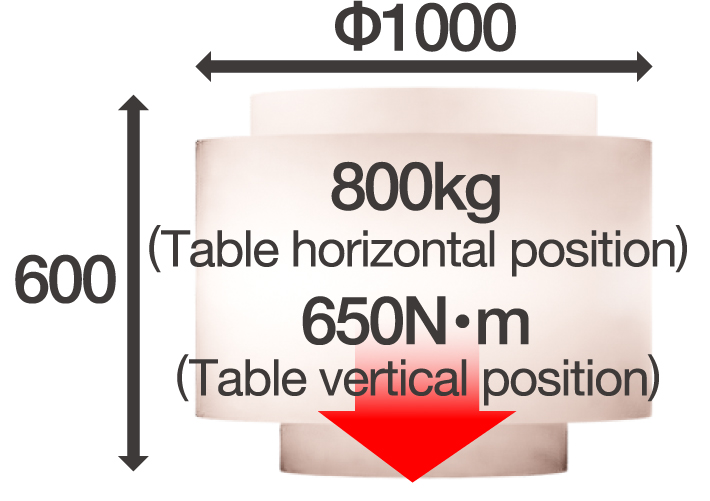

Work Dimension
![](https://www.yasda.co.jp/en/wp-content/uploads/sites/2/work-8T-63TT_en.jpg)
- Unit[mm]
Optional equipment
High-torque spindle
|
Spindle speed range | 60-6,000min-1 |
---|---|---|
Spindle taper hole | MAS BT50 | |
High-speed spindle
|
Spindle speed range | 60-15,000min-1 |
Spindle taper hole | MAS BT50 | |
High-speed spindle
|
Spindle speed range | 200-20,000min-1 |
Spindle taper hole | MAS BT40 | |
Stroke extension (Total length) | Y1,250mm/Z1,400mm | |
APC | 6PLS | |
Tool storage capacity | 90 tools/120-450 tools |
